NOTE: This page here is for historic purposes. Please read the www.atarikit.co.uk for the new MonSTer board.
Here you'll find details on what to order for your IDE setup.
Please read the disclaimer below. Ensure you understand the implications of plugging the device into your system.
THESE PRODUCTS ARE PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THESE PRODUCTS OR THE USE OR OTHER DEALINGS IN THESE PRODUCTS.
If there are any questions about what to order, feel free to contact me.
I've tested all shipments on my personal Atari's before shipping. So rest assured they are working on shipment.
Additionally, you need TOS 2.06 to autoboot from the IDE board. But the IDE board will function without TOS 2.06. I do not recommend TOS < 1.04 though.
I also recommend HDDriver by Uwe Seimet, as it supports the secondary port to provide up to 4 IDE devices.
Using AHDI, CBHD or other HD driver software should work and will only support the primary port, i.e. only 2 IDE Devices.
I've tested the IDE board with many IDE devices, but I cannot guarantee it works with all devices. I'll try to help where I can though.
The IDE board is completely solderless in the STE, MegaSTE(provided U11 is socketed) and MegaST(with the MegaBus adapter) computers. For ST it needs soldering skills.
I recommend for ST users, to solder a socket on top of the 68000 CPU before installing the IDE board.
Also, there are many ST motherboards with the 68000 CPU in different places. You may need to recase your ST to fit the IDE board.
Please visit the Atari Forum via this link to learn more about others experience with the IDE board.
NOTE: When installing in MegaSTE or STE computers there is a chance that when removing the IDE controller the CPU pins no longer make contact and your STE may not boot. The pins on the CPU may need bending back to reconnect with the 68000 processor. BE WARNED !!!!!!!!!!!!!!!!!!!!!!!
NOTE: I don't hold huge stock levels, so feel free to order, but there may be some delays, i.e. several weeks in some cases to ship your order. I'll normally contact you to let you know anyway on the status, but also feel free to contact me if you have any questions. This is a hobby after all :-) !!!!
NOTE: If there are any questions on the operation of the board, please use the Atari Forum so others can benefit from the answers. Thanks !!
| Item | Description | Price | Buy |
|---|---|---|---|

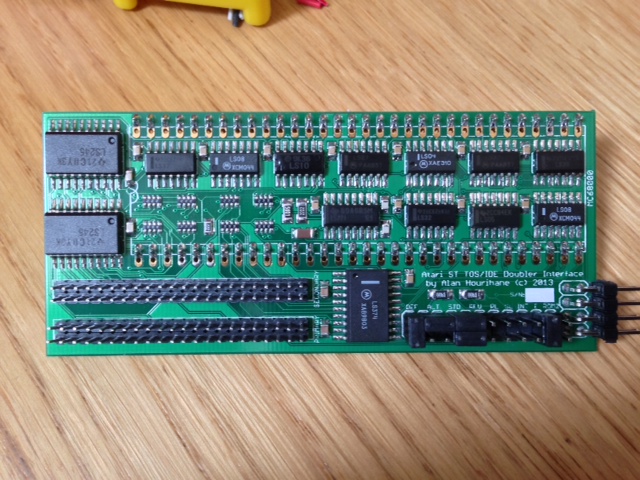

 ST IDE board |
Atari ST IDE Board. Order this for Atari ST/MegaST. For MegaST you'll need the MegaST Adapter board, and for ST it's best to get a socket. |
||
 STE IDE board |
Atari STE IDE Board. Order this for Atari STE/MegaSTE. For MegaSTE you'll need the MegaSTE Adapter board. |
|
|
 MegaST Adapter board |
Atari MegaST Adapter board. Also known as the MegaBus. Complete with power cable. |
||
 MegaSTE Adapter board |
Atari MegaSTE Adapter board and cable. Please check U11 is socketed before ordering. If not, you'll need to solder instead. |
||
 64pin 68000 socket |
64Pin Socket. | ||
 ROM Upgrade board |
Atari ST/MegaST ROM Upgrade boards for TOS 2.06 Not for STE. Requires IDE board. |
||
 ROM chips |
Atari TOS 2.06 ROM Chips for ROM board above. The actual chip may vary. Access speeds up to 200ns. |
||
| Shipping charge - UK only(single quantity - please email for multiple shipping quote) | |||
| Shipping charge - Worldwide (single quantity - please email for multiple shipping quote) |
